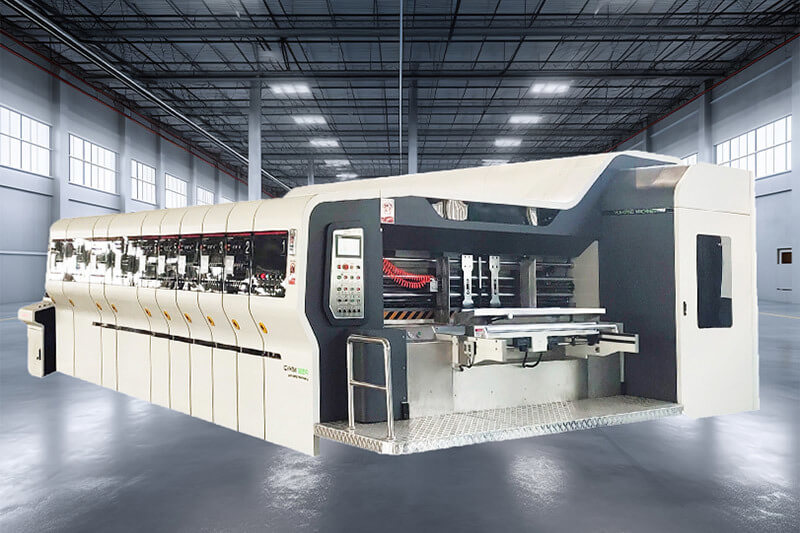

Stone Plastic Carton Hd Printing Production Line

Step1

Independent Leading Edge Feed

Extended paper feeding (can be arbitrarily set according to needs), Reducing the pressure-free cardboard；
It solves the problem of deformation of the stone-plastic hollow corrugated, greatly improves the compressive strength of the stone-plastic box, and reduces the strength damage to the stone-plastic hollow corrugated.

Step2

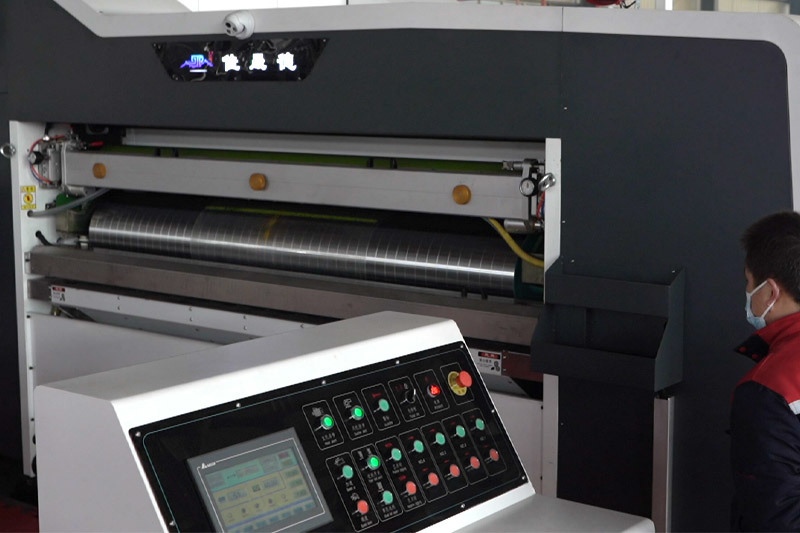

Printing Unit

The whole process suction feed paper transfer system can realize full plate and solve the problem of flat printing of stone plastic Carton

Max production
speed(pcs/min)

300

280

250

230

180

180

180

Max cardboard
Size(mm)

900*200

900*2400

1200*2400

1200*2800

1600*2400

1600*2800

1600*3200

Min cardboard
Size(mm)

260*600

260*600

300*600

300*600

450*600

450*600

450*600

Paper size for intermittent feeding(mm)

1200*2000

1200*2400

1500*2400

1500*2800

2000*2400

2000*2800

2000*3200

Max printing area(mm)

900*1960

900*2360

1200*2360

1200*2760

1600*2360

1600*2760

1600*3160

Thickness of standard printing plate(mm)

7.2

7.2

7.2

7.2

7.2

7.2

7.2

Min slotting distance

Slotting typeR (mm)

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

Slotting typ L (mm)

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

Min slotting distance

Slotting type R (mm)

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

130*130*130*130

Slotting type L (mm)

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

230*65*230*65

Max slotting depth(mm)

250

250

300

300

400

400

400
